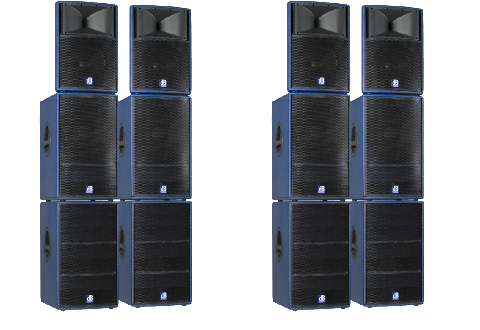

dB TECHNOLOGIES Forty line
db FORTY LINE 12800 watt peak SPL 134
QLS 151 System 3-Way Active, 1.600W RMS
QLS 152 System 4-Way Active, 3.200W RMS
QL 12 Passive High-Mid-Unit• 12" Woofer 2.5” Voice coil
• 1" compr. driver
• 90°x60° dispersion
• 200 - 19.000 Hz
• 128 dB SPL peak
• 3 x M10 flying points
• 1 x Speakon NL4 Connector
• 435/140x600x400mm / 17,1/5.5x23.5x15.75 in
• 23.5 kg / 51,8 lb
QL 15 Active Woofer
• 15" Woofer with 3"Voice-Coil
• TriAmp-amplifier with 500+300+100 Watts/RMS
• Integrated Audiocontroller
• Full-Wave-Limiter per channel
• 4-speed fan
• 130 dB SPL peak
• 55 - 200 Hz (90-200 Hz with QL215)
• 1 x XLR/Jack Input
• 1 x XLR Parallel-Out
• 1 x Speakon NL4 Output
• 435x700x500mm / 17.1x27.56x19.7 in
• 31.2 kg / 68,8 lb
QL 152 Active Subwoofer
• 2 x 15" Woofer 2.5” Voice coil
• Class H-amplifier with 800 W/RMS
• Integrated Audio controller
• Full-Wave-Limiter
• 4-speed Fan
• 134 dB SPL peak
• 40 - 90 Hz
• 1 x XLR/Jack Input
• 1 x XLR Parallel-Out
• 435x700x700mm / 17.1x27.56x27.56 in
• 42 kg / 92,6 lb
